FCG280-467 | DC Motor | Charge Port Cover Lock Motor | 13.5V DC | 50.0g·cm | 4800 RPM

SKU: FCG280-467 Category: DC Motors

Secure Payment 100% SSL Protected

Fast Shipping 2–7 Business Days

24/7 Support Always Here to Help

Easy Returns 30-Day Policy

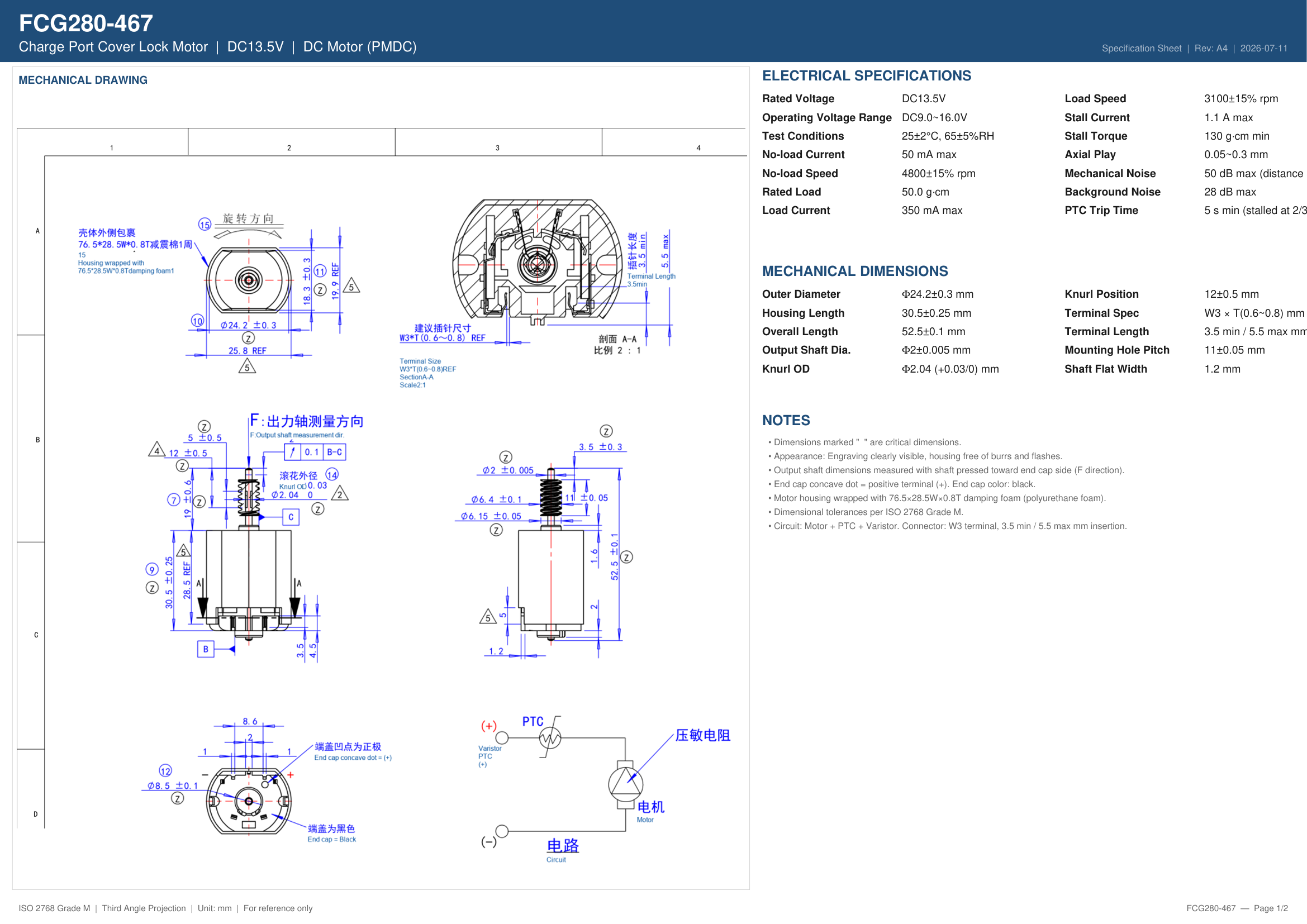

Mechanical Drawing

Note: 76.5×28.5W×0.8T polyurethane foam wrapping.

End cap concave dot = positive terminal (+). End cap color: black.

Connector: W3 terminal, 3.5 min / 5.5 max mm insertion.

Dimensional tolerances per ISO 2768 Grade M. Specifications subject to change without notice.
