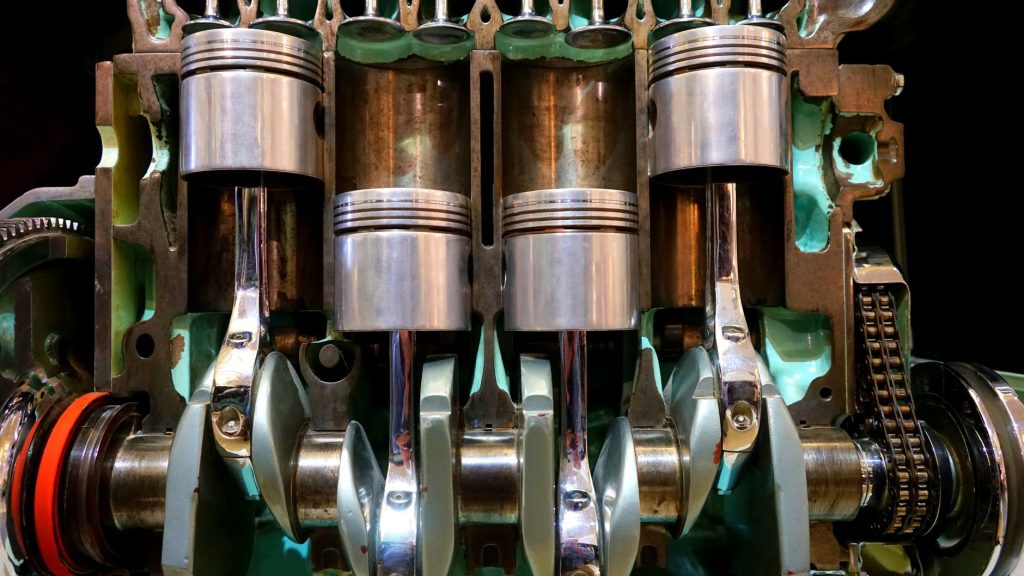

The modern Lincoln is a study in contradictions. It’s a heavyweight luxury cruiser that can park itself, a land yacht that watches the road with radar eyes, and a silent cabin that constantly measures the air around you. But none of that magic happens without a dense network of sensors feeding data to the powertrain control module and body control modules at lightning speed.
For shop owners and DIY owners alike, understanding how these sensors think—not just what they do—is the difference between guessing and diagnosing. And when a Lincoln rolls in with a misfire or a suspension warning that traces back to a failed sensor, the fix is often simpler than the wiring diagram suggests.
Here’s how the pressure, temperature, height, and radar sensors in your Lincoln actually work, and why one small ignition component can make or break the entire sensor ecosystem.
Pressure Sensors: The Silent Barometers of Engine and Cabin
Lincoln’s engines—whether the 2.0L EcoBoost or the 3.5L twin-turbo—rely on manifold absolute pressure (MAP) sensors and fuel rail pressure sensors to maintain the precise air-fuel ratio that keeps the luxury ride smooth. These are piezoresistive sensors at their core.
The Wheatstone Bridge Principle
Inside a MAP sensor, a thin silicon diaphragm is etched with four piezoresistors arranged in a Wheatstone bridge configuration. When intake manifold pressure changes, the diaphragm flexes. That flex changes the resistance of the piezoresistors—two increase, two decrease. The bridge converts this resistance imbalance into a millivolt-level voltage signal.
The engine control module (ECM) reads this voltage and correlates it to a pressure value using a calibration table. Most Ford and Lincoln MAP sensors output a 0.5V to 4.5V analog signal, with 0.5V representing full vacuum and 4.5V representing atmospheric pressure (or boost, depending on the application).
Signal Types and What They Mean
Here’s the catch: Lincoln uses both analog and digital (frequency-based) pressure sensors depending on the model year. Pre-2010 models typically use analog voltage. Newer models, like the 2017+ Continental, use a local interconnect network (LIN) bus digital signal. A LIN signal is a single-wire protocol that sends a pulse-width-modulated square wave. The ECM measures the duty cycle—the percentage of time the signal is high versus low—to determine pressure.
Pro tip: If you’re scoping a LIN-based pressure sensor and see a flat line at 12V, that’s not a dead sensor—that’s a communication failure. Check the wiring harness for chafing near the engine mount. It’s a common failure point on the 3.0T Lincoln Aviator.
Temperature Sensors: Negative Temperature Coefficient (NTC) Thermistors
Every Lincoln has at least six temperature sensors: coolant, intake air, ambient air, transmission fluid, and cabin temp. Almost all of them are NTC thermistors.
How NTC Works
An NTC thermistor is made of metal oxides (manganese, nickel, cobalt) that act as semiconductors. As temperature rises, the thermal energy excites more electrons into the conduction band, lowering electrical resistance. The relationship is exponential, not linear.
The ECM sends a known reference voltage (usually 5V) through a fixed resistor in series with the thermistor. The voltage drop across the thermistor is read by the analog-to-digital converter. The ECM then uses a lookup table—stored in its flash memory—to convert that voltage into a temperature reading.
The Cold Start Failure Mode
Here’s where Lincoln owners run into trouble. An NTC sensor that drifts out of spec will read colder than actual. On a cold start, the ECM adds extra fuel because it thinks the engine is freezing. The result is a rough idle, black smoke, and a catalytic converter that takes a beating.
Common mistake: Replacing the sensor but not cleaning the connector. NTC sensors operate on microamps. A tiny bit of oxidation adds enough resistance to shift the reading by 10-15°F. Clean the terminals with electrical contact cleaner and apply dielectric grease.
Height Sensors: The Suspension’s Level Head
Lincoln’s air suspension—standard on Navigator and available on Aviator—uses height sensors at each corner to maintain ride height and self-leveling. These are not simple potentiometers anymore. Modern units are Hall-effect sensors.
Hall-Effect Measurement
A magnet is attached to the suspension control arm. As the arm moves, the magnet passes over a Hall-effect integrated circuit mounted on the chassis. The IC detects the magnetic field’s position and converts it to a digital signal—usually a PWM signal where the duty cycle changes with height.
The suspension control module reads all four sensors, averages them, and commands the air compressor to add or vent air to maintain the target ride height. The target height is stored in memory and can be adjusted via the Lincoln service software.
What Happens When a Sensor Fails
When a height sensor fails, the module usually defaults to a “safe” height—often too high or too low—and illuminates the suspension warning light. But here’s the diagnostic trap: if one corner sits low but the sensor reads correctly, the problem is a leaking air spring, not the sensor.
Real-world scenario: A 2020 Lincoln Corsair came in with the rear end sagging on the passenger side. The height sensor was reading 15mm lower than the driver side—but that was accurate. The air spring had a pinhole leak. The shop replaced the spring, cleared the code, and the sensor recalibrated itself after a 10-minute drive. The lesson: verify the sensor isn’t lying before replacing it.
Radar Sensors: The Eyes of Co-Pilot360
Radar sensors in Lincoln vehicles are part of the Co-Pilot360 suite, handling adaptive cruise control, collision warning, and blind-spot monitoring. These are not cameras—they’re frequency-modulated continuous-wave (FMCW) radars operating in the 76-77 GHz band.
FMCW Principle
Unlike a pulse radar that sends a burst and waits for the echo, FMCW sends a continuous signal that sweeps linearly in frequency. The reflected signal from a target arrives slightly delayed. When mixed with the transmitted signal, the delay creates a beat frequency—a low-frequency signal that’s proportional to the distance.
The radar module’s digital signal processor (DSP) runs a fast Fourier transform (FFT) on the beat frequency to extract range. Velocity is determined by the Doppler shift—the frequency difference between the outgoing and returning signal caused by the target’s relative motion.
Signal Output and Integration
Radar sensors send data over the CAN bus, not as analog voltages. The data is packaged in CAN frames—typically 8 bytes of data per frame, containing range, velocity, and azimuth angle. The adaptive cruise control module fuses this data with camera input and uses a Kalman filter to track target vehicles.
The failure mode that confuses many techs: A radar sensor that’s slightly misaligned—even by 1 degree—will produce erratic readings. The vehicle will brake unexpectedly or fail to detect vehicles in adjacent lanes. Lincoln’s service procedure requires a radar alignment using a special target and a scan tool. Many aftermarket shops skip this and blame the sensor.
The Ignition Coil Connection: Why OS1109 Matters for Sensor Accuracy
Here’s the part that ties it all together. Every sensor reading in a Lincoln is only as good as the power supply and the grounding integrity. And no component stresses the electrical system more than the ignition coils.
The OS1109 OSRAM ignition coil is a direct fit for several Ford and Lincoln applications, including the 2.0L EcoBoost engines found in the MKZ and MKX. This is a pencil-type coil with a built-in driver circuit. It draws high current—up to 8 amps during dwell—and switches it off rapidly to generate the 30,000+ volts needed for spark.
How a Failing Coil Corrupts Sensor Data
When an ignition coil starts failing, it doesn’t always cause a complete misfire. Sometimes it causes a partial misfire—the spark is weak, but the engine still runs. This creates a voltage spike on the power rail that can interfere with the 5V reference voltage supplied to the MAP, TPS, and temperature sensors.
I’ve seen a Lincoln with a failing coil on cylinder 2 that threw a P0106 (MAP sensor performance) code. The MAP sensor was fine. The coil was injecting noise into the 5V reference circuit. The ECM saw erratic voltage and assumed the sensor was bad.
The OSRAM Advantage
OSRAM isn’t typically the first name that comes to mind for ignition components—the brand is better known for lighting. But the OS1109 is manufactured to OE specs, with proper epoxy potting and a copper-wound secondary coil that delivers consistent spark energy across the RPM range. It’s a solid replacement for the Motorcraft BL3Z12029C.
Why this matters for sensor health: A coil that fires consistently produces a clean voltage waveform. No noise injection. No corrupted sensor signals. The ECM gets clean data, and the fuel trims stay within acceptable ranges.
Signal Integrity: The Unseen Diagnostic
Here’s the bottom line for anyone working on a modern Lincoln: the sensors themselves are rarely the problem. The wiring, the connectors, the grounding, and the ignition system are what corrupt the signals.
When you’re chasing a sensor code, start with the basics:
- Check the 5V reference voltage at the sensor connector. It should be within 4.8-5.2V with the key on.
- Check the ground. A poor ground will cause erratic readings.
- Scope the signal wire. Is it clean, or does it have noise spikes?
- Check the ignition coils. A failing coil can inject noise into the entire harness.
And when you do need to replace a coil, the OS1109 | OSRAM Ignition Coil | Fits Ford, Lincoln | OE# BL3Z12029C is a reliable choice. It’s built to handle the thermal stress of turbocharged engines, and it won’t break the bank compared to the dealer part.
For the Lincoln owner who wants to preserve the sensor ecosystem—whether it’s the MAP sensor reading boost, the NTC thermistor measuring coolant temp, or the radar unit tracking traffic ahead—clean ignition is non-negotiable. The OS1109 delivers that clean ignition. It’s the unsung hero that keeps the sensor data honest.
