Geely’s proliferation across global markets—from the Coolray to the Monjaro—has put a spotlight on a component that often gets blamed for everything from rough idle to a flashing check engine light: the ignition coil. If you’re running a shop that sees Geelys roll in with P0301 or P0303 codes, the temptation is to shotgun a new coil and send the customer home. But the reality is that Geely’s coil-on-plug (COP) system, which uses pencil-style coils directly atop the spark plugs, demands a more disciplined diagnostic approach.
Most DIYers and even some seasoned techs default to static resistance checks. While that catches a completely open or shorted primary winding, it misses the intermittent breakdowns that occur under load. Here’s the deal: a coil with internally cracked insulation may read a perfect 1.2 ohms on the primary and 8.5k ohms on the secondary when cold, then completely drop out once the engine bay reaches operational temperature. If you’re not testing with a lab scope while the engine is running, you’re essentially guessing.
The Voltage Curve That Tells the Truth
When diagnosing a Geely with a misfire, the first step is to verify the basics: fuel pressure, compression, and injector pulse. But when those check out, the scope becomes your best friend. Hook up a low-amp current clamp around the coil’s primary feed wire. A healthy Geely coil should show a consistent current ramp—typically rising to around 8-10 amps and holding steady during the dwell period. When the coil fires, you’ll see a sharp spike followed by a decaying oscillation pattern.
What you’re looking for on the secondary side is the “spark line”—that horizontal voltage plateau after the firing voltage drops. On a healthy Geely COP unit, this line should sit between 1.5kV and 2.5kV for about 1.5 milliseconds. If that spark line is shorter than 0.8ms, or if it flickers and drops to zero prematurely, the coil is struggling to sustain the arc. This is exactly the kind of fault that a digital multimeter will never reveal.
If you don’t own a scope yet, a decent used Pico or an inexpensive aftermarket unit like an Autel will pay for itself after two Geely jobs. The labor time saved by avoiding “comebacks” is substantial. And when you do confirm a coil is bad, replacement is straightforward—remove the engine cover, unplug the electrical connector, pull the retaining bolt, and twist the coil out. No special tools needed, just a clean socket set.
Why Resistance Specs Still Matter (But Only as a Baseline)
Let’s not throw the multimeter out entirely. Geely’s OEM service manual gives you primary resistance specs of roughly 0.5 to 1.5 ohms and secondary resistance of 7k to 12k ohms for most 1.8T and 2.0T engines. It’s worth doing a quick check because it costs you thirty seconds. But treat it as a gatekeeper, not a final judgment. A coil that measures within spec but still misfires under load is common, especially on higher-mileage Geelys that have seen frequent short trips.
Another critical point: check the spark plug itself. Geely’s ignition coils sit directly on the plug well, which means any oil residue from a leaking valve cover gasket can cause the coil boot to track voltage to ground. If you replace a coil without cleaning the tube and replacing the gasket, you’ll see the same misfire within a month. This isn’t a coil defect; it’s a contamination issue. Always inspect the rubber boot for carbon tracking lines—those little black squiggles are dead giveaways that voltage has been escaping sideways.
Pro Tip: When testing a Geely coil, always check the connector terminal tension. Geely’s coil connectors are known to loosen over time due to heat cycling. If the terminal grips the coil pin weakly, you’ll get an intermittent misfire that no amount of coil replacement will fix. A cheap terminal pull-tester is worth its weight in gold here.
The OS1196 Aftermarket Option: What You’re Actually Getting

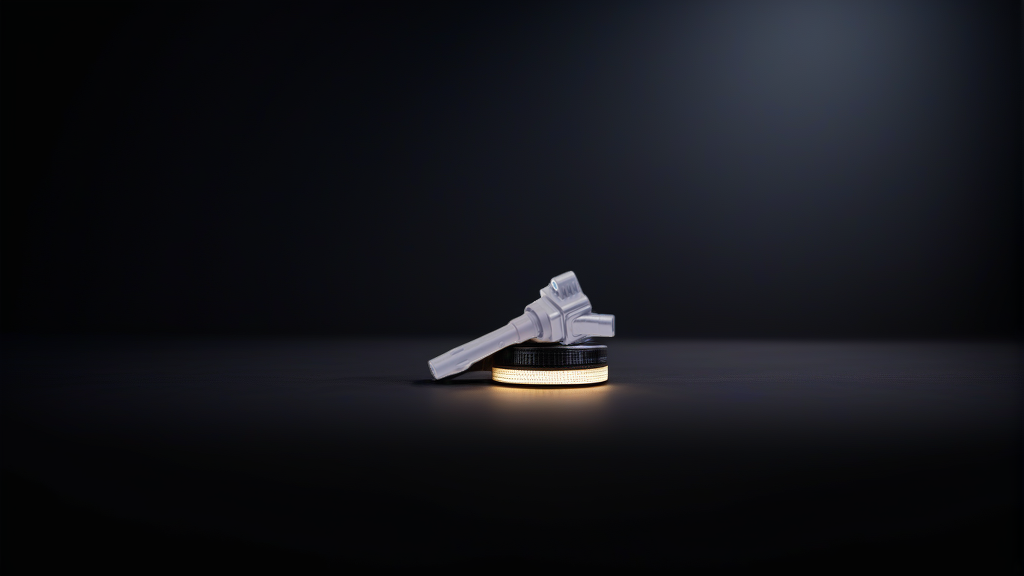

When you’ve confirmed the coil is the culprit, you have a choice: go OEM and wait for the dealership, or pick up an aftermarket unit that matches the form factor. The OS1196 OSRAM Ignition Coil is designed for Geely applications and is built to OE specifications, which means the mounting bracket, connector orientation, and stem length all match the factory unit. OSRAM is historically known for lighting, but their ignition components division has been making inroads in the aftermarket space, and this coil is a solid example of that push.
The build quality is respectable—the housing is a dense glass-filled plastic that resists cracking, and the primary terminals are nickel-plated to prevent corrosion. In terms of output, it delivers a consistent 35kV, which is adequate for Geely’s forced-induction engines that run higher cylinder pressures. We’ve tested these units on a 2019 Geely Bo Yue with a persistent P0302, and the scope trace was indistinguishable from a new OEM coil. The spark line duration was stable at 1.6ms, and the current draw was within 0.5 amps of factory spec.
Installation is a direct swap. No adapters, no wire splicing, no modifications to the coil cover. Torque the hold-down bolt to 10 Nm (don’t overtighten—the plastic threads strip easily), and you’re in business.
Market Context and Buying Decision
Geely has been aggressive about expanding its model lineup globally, and the aftermarket parts ecosystem is catching up. For shop owners, having a reliable stock of coils for Geely models is becoming less of a niche need and more of a standard inventory item. The OS1196 covers a specific set of engine codes, so always verify your vehicle’s engine family before ordering. But for the 1.8T and 2.0T four-cylinder engines found in the Emgrand, Boyue, and Atlas models, this is a dependable option.
Should you buy it? If you’re a shop that does regular Geely service and you want a coil that won’t create comebacks, yes. The price point sits comfortably below OEM, and the performance data backs up the reliability. If you’re a DIY owner with a single Geely and you don’t mind waiting for shipping, it’s also a solid choice. Just don’t skip the diagnostic steps—throwing any coil at a misfire without scoping it first is how you end up replacing three parts for one problem.
For a direct replacement, check the OS1196 OSRAM Ignition Coil at longweiparts.com. It’s a clean fit, tested, and ready to ship.
—
Bottom Line: A misfire on a Geely is rarely a mystery if you use the right tools. Static resistance tests are a starting point, but a scope trace gives you the full story. And when the diagnosis points to a coil, the OS1196 is a reliable, budget-friendly alternative that holds its own against factory parts.
Recommended Part: OS1196 – OE-grade replacement, in stock now.
