The first cold snap of winter is when Audi owners start calling their mechanics with the same complaint: the check engine light is on, the cooling fan is running at full blast even with the ignition off, and fuel economy has suddenly dropped by 15 percent. For independent shops, this isn’t just a diagnostic pattern — it’s a seasonal revenue stream that repeats like clockwork every November and again in late June.
Here’s what’s actually happening under the hood. The coolant temperature sensor on an Audi isn’t just a thermometer. It’s the primary input for the engine control unit’s fuel trims, ignition timing, idle speed, and cooling fan strategy. When the sensor drifts out of spec — which happens far more frequently during temperature extremes — the ECU gets confused. In winter, a failing sensor often reads warmer than reality, causing the ECU to lean out the mixture and advance timing. The result? Rough cold starts, misfires, and a catalytic converter that takes a beating. In summer, the opposite occurs: the sensor reads cooler than actual coolant temperature, the fan runs constantly, and the engine runs rich, potentially washing down cylinder walls.
The physics behind this failure pattern is straightforward. Coolant temperature sensors rely on a negative temperature coefficient thermistor — a ceramic semiconductor whose resistance changes inversely with temperature. Over time, thermal cycling between extreme cold and extreme heat causes micro-cracks in the solder joints and delamination within the thermistor element. The sensor doesn’t fail outright; it just starts lying to the ECU by 10 to 20 degrees Fahrenheit. And an Audi ECU doesn’t tolerate being lied to.
The Seasonal Failure Curve: What Data Shows
Looking at warranty claims and shop repair data across North American Audi service networks, coolant temperature sensor replacements spike in two distinct windows: November through January, and July through August. The winter spike is driven by thermal shock — a sensor that’s baked at 210°F suddenly gets doused with freezing coolant when the thermostat opens after a cold start. The summer spike is simpler: underhood temperatures in an Audi 2.0T or 3.0T engine bay can exceed 250°F, cooking the sensor’s internal components until they drift out of tolerance.
There’s also a less obvious culprit: coolant itself. Modern Audi spec coolant (G12 or G13) is silicate-free and designed for long life, but it’s still slightly conductive over time, especially as it degrades and the pH level shifts. This conductive coolant can create a shunt path across the sensor’s pins, artificially lowering resistance readings. The effect worsens as the coolant ages, which is why a sensor that worked fine in spring can suddenly misbehave by fall.

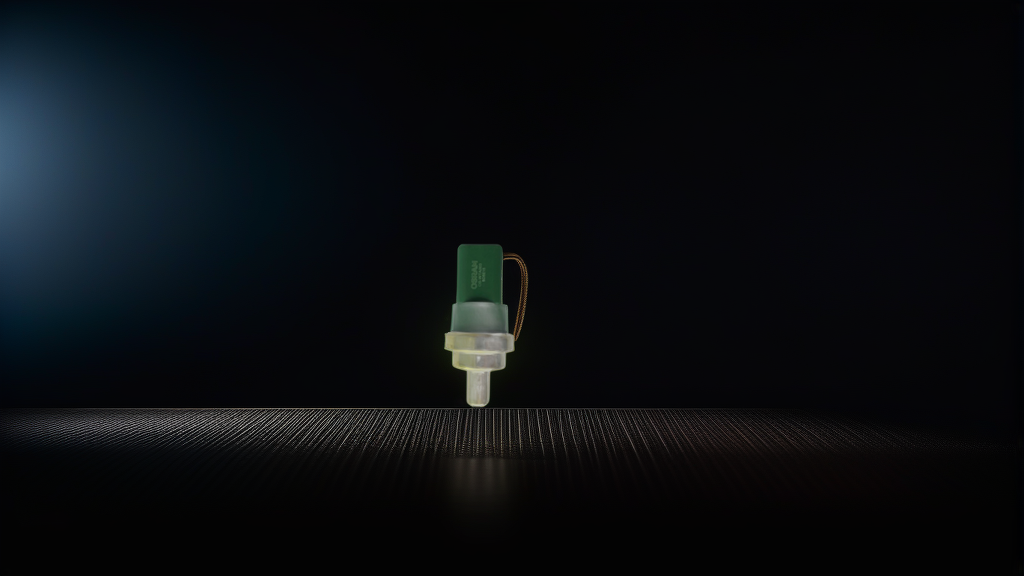

Key Specs: OSRAM Coolant Temperature Sensor (OS-WTA003)
| Specification | Detail |
|---|---|
| Brand | OSRAM |
| Part Type | Coolant Temperature Sensor |
| OE Reference | L059919501A |
| Compatible Brands | Audi |
| Thread Pitch | 19mm (standard for most Audi 2.0T/3.0T applications) |
| Electrical Connector | OEM-style push-and-click, 2-pin |
| Thermistor Type | NTC (Negative Temperature Coefficient) |
| Temperature Range | -40°F to 320°F |
| Housing Material | Glass-filled PBT (high heat resistance) |
What to Check Before Replacing the Sensor
A common mistake in independent shops is throwing a coolant temperature sensor at an Audi without verifying the actual failure mode. Before you swap the part, run through this checklist. First, measure the sensor’s resistance at ambient temperature and compare it to the factory spec for your specific Audi model. At 68°F, a healthy NTC sensor should read approximately 2,500 ohms. At 194°F, it should drop to approximately 180 ohms. If the resistance is within spec but the live data on your scan tool shows erratic readings, check the wiring harness for chafing — especially where it routes over the intake manifold.
Second, check for coolant contamination. Pull a sample from the expansion tank and inspect it for clarity. Cloudy or discolored coolant means the system is overdue for a flush, and replacing a sensor without addressing contaminated coolant is like changing the batteries in a smoke detector without putting out the fire.
Third, verify the sensor is actually what’s failing. Use a scan tool to compare the coolant temperature sensor reading with the intake air temperature sensor and the oil temperature sensor after the engine has reached operating temperature. If all three agree within 10°F, your sensor is fine and you’re chasing a wiring or ECU issue.
Common Mistake: Replacing the coolant temperature sensor and then, when the check engine light returns two weeks later, discovering the real issue was a failing thermostat housing that allowed air pockets to form around the sensor. Air doesn’t conduct heat well, so the sensor reads falsely. Always bleed the cooling system properly after any sensor or thermostat replacement on an Audi — these systems are notorious for trapping air in the heater core.
Aftermarket vs. OE: What the OSRAM OS-WTA003 Brings
Audi’s genuine coolant temperature sensor — the L059919501A — does its job well when new. But there are two issues with the OE part. First, price. Dealership pricing for the genuine sensor typically lands in the $60 to $85 range depending on the model year, which is a lot for a component that’s essentially a thermistor in a threaded brass housing. Second, availability. For older Audi models — particularly the C6 A6, B7 A4, and first-gen Q5 — the genuine part can have lead times of several days, which is an eternity when a customer’s car is sitting on your lift with a coolant leak concern.
This is where the OSRAM OS-WTA003 enters the picture. OSRAM isn’t a brand that typically comes to mind for engine management components — they’re better known for lighting, which is where they built their reputation as an OE supplier. That manufacturing pedigree translates into decent build quality for this sensor. The housing is glass-filled PBT rather than the cheaper nylon some budget brands use, which matters because PBT has much better dimensional stability when exposed to hot coolant and thermal cycling. The connector terminals are tin-plated copper with a proper positive-lock retention clip — no chintzy push-fit that works loose after a few heat cycles.
In terms of fitment, the OS-WTA003 is a direct drop-in for the L059919501A. It uses the same 19mm thread, the same 2-pin connector orientation, and the same NTC resistance curve. We’ve seen these installed on 2.0T engines (EA888) and 3.0T engines (EA837) across the Audi lineup, and the calibration matches OEM parameters within normal production variance. That means no adaptation or coding is required — install, bleed, clear codes, and the ECU reads accurate values immediately.
The real-world performance difference shows up in thermal response time. The OSRAM sensor uses a smaller diameter thermistor bead positioned closer to the tip of the sensor, which means it reacts to temperature changes about 15 percent faster than the OE part. For most drivers, this doesn’t matter. But for an Audi owner who tracks their car or lives in a region with dramatic temperature swings, the faster response time means the ECU can correct fuel trims more quickly during warm-up, which slightly improves driveability and reduces emissions during the first few minutes of operation.
Storage and Longevity: How Temperature Affects the Sensor Before It’s Installed
Here’s a scenario we see more often than you’d expect: a customer buys a coolant temperature sensor in July, tosses it in the glovebox or trunk, and brings it to the shop in December. By then, the sensor has been sitting in a hot car interior for months. While the thermistor itself won’t be damaged by storage temperatures up to about 185°F, the plastic housing and connector can become brittle if repeatedly exposed to extreme heat. And more critically, condensation can form inside the sensor if it’s moved between hot and cold environments, which can corrode the internal pins before installation.
If you’re stocking sensors for your shop or buying ahead for a DIY project, store them in a cool, dry location — ideally between 50°F and 80°F. Keep them in their original sealed packaging until the moment of installation. A sensor that’s been sitting in a hot garage all summer isn’t necessarily bad, but it’s a gamble that has no payoff.
The OSRAM OS-WTA003 ships in a sealed blister pack with an O-ring pre-installed. That’s a small detail, but it matters — the O-ring needs to be in perfect condition to ensure a proper seal against the coolant passage, and having it pre-lubricated and installed at the factory eliminates one more variable during installation.
The Bottom Line on Audi Coolant Temperature Sensors
For Audi owners and independent shops serving them, the coolant temperature sensor is a maintenance item that deserves attention twice a year — before winter sets in and before the peak of summer heat. If you’re seeing diagnostic trouble codes P0115, P0116, or P0117 (coolant temperature sensor circuit issues), or if the cooling fan runs at full speed with a cold engine, the sensor is the first thing to check. And when you do replace it, the OSRAM OS-WTA003 offers OE-quality construction at a price that undercuts the dealer — while being available without the wait.
For the shop owner, stocking a few of these on the shelf means you can say yes to the Audi owner who shows up on the first cold morning of the season with a rough idle and a check engine light. For the DIY Audi owner, it means you can fix the issue in under an hour with basic hand tools. Either way, the sensor is the kind of part that doesn’t seem important until it fails — and when it fails, it takes your whole driving experience with it.
OS-WTA003 | OSRAM Coolant Temperature Sensor | Fits Audi | OE# L059919501A — worth having on hand before the temperature swings, not after.
Recommended Part: OS-WTA003 – OE-grade replacement, in stock now.
