You’ve got a 200-series Land Cruiser in the bay with a misfire at highway speeds—no check engine light yet, but driver says it feels “lazy” climbing grades. Pull the logs: 80,000 miles on the original plugs and coils. Classic story. The factory interval for spark plugs on most Land Cruiser V8s is 60,000 miles; coils are often recommended for replacement around 100,000. But here’s the reality—by 80,000, those coils are already degrading internally, and the plugs are eroding enough to increase the required firing voltage. The misfire isn’t random; it’s physics.
Start your diagnosis with a simple resistance check on the primary and secondary windings of the coil. But don’t stop there. A coil that tests within spec cold can still fail under heat and load. Swap in a known-good coil on the suspect cylinder and test drive. If the misfire moves, you’ve found the culprit. If not, it’s likely the plug (cracked insulator, wide gap) or a wiring harness issue common on older 100-series models.
When you’re replacing coils and plugs on a Land Cruiser, go ahead and do all six or eight at once. Mixing old and new coils creates uneven firing characteristics and sets you up for a comeback. The Land Cruiser platform is notoriously robust, but its ignition system is sensitive to voltage drops from aging components.
Common Mistakes
Using aftermarket plugs that don’t match the exact heat range specified for your engine code—2UZ-FE and 1UR-FE require different copper core vs. iridium types. Also, torquing plugs without a calibrated wrench on aluminum heads invites thread damage.
Stick with OE-spec iridium plugs for modern Land Cruisers and always replace the coil boots if you’re reusing the factory coils. A cracked boot with 80,000 miles on it will arch to ground before you’ve finished the job.
For the tune-up checklist: inspect the ignition wire harness for chafing near the firewall, clean the coil mounting surfaces to ensure proper grounding, and apply dielectric grease to the coil connector terminals. On the 200-series, there’s a known issue with the #6 coil connector losing tension—check that with a back-probe before buttoning up.

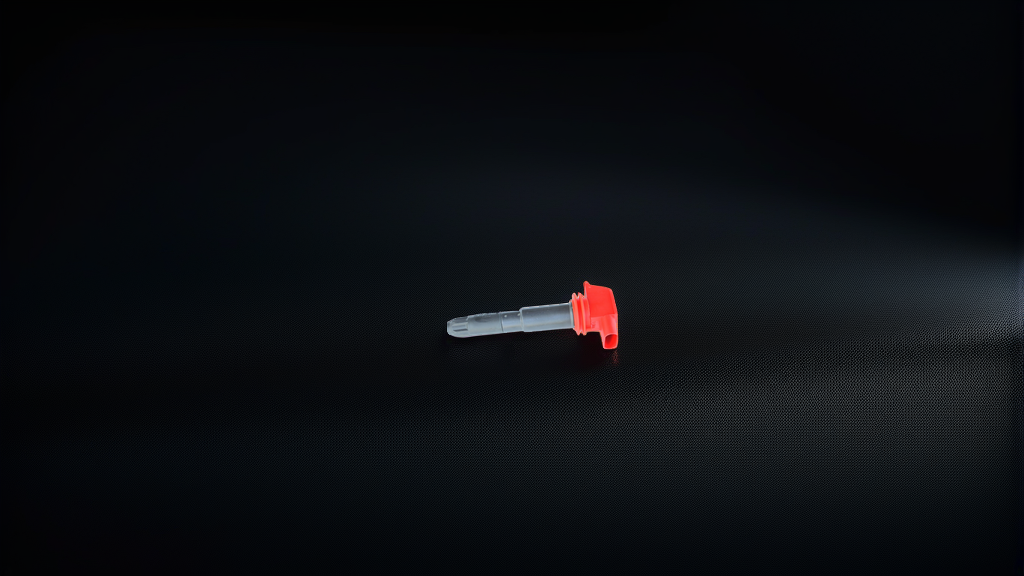

If you’re working on a Porsche Cayenne or Panamera, the same maintenance principles apply—and the OS1063 OSRAM Ignition Coil (OE# 94860210402) is a direct-fit replacement that eliminates the common misfire-on-acceleration problem caused by weak factory coils. For Land Cruiser owners, Longweiparts stocks high-quality aftermarket coils and OEM-grade spark plugs that match factory specs at a fraction of the dealer price. Your next Land Cruiser tune-up should include a full set—coils, plugs, and boots—to keep that 4.6L or 5.7L pulling strong through 150,000 miles.
