Why Honda TPMS Relearn Matters
When you replace a tire pressure sensor—whether with a pre-programmed unit like our BL-ST-037 | BH-Sens 433MHz TPMS Tire Pressure Sensor | Fits Fukang, Honda | OE# 4275333W, ZQ01162780 or an OEM equivalent—the vehicle’s ECU doesn’t automatically recognize the new sensor ID. Without a relearn, the TPMS light stays on, and you lose accurate pressure readings. Different Honda models use one of three relearn methods. Choosing the right method saves you a trip to the dealer.
Honda TPMS Relearn Methods Overview
Honda began using direct TPMS in the mid-2000s. Most models from 2008 onward rely on 433MHz sensors. Below is a summary of methods by model year range (always verify your specific year via the owner’s manual or a reliable database).
| Relearn Method | Typical Honda Models | Tools Needed | Procedure Time |
|---|---|---|---|
| Stationary (Magnet) | 2008–2020 Accord, CR-V, Civic, Pilot, Odyssey | TPMS trigger tool or strong magnet, scan tool (optional) | 5–10 minutes |
| OBD (Scan Tool) | 2016+ Civic, 2017+ CR-V, most newer models | TPMS-capable scan tool (e.g., Autel TS508, Bartec) | 2–5 minutes |
| Auto Relearn (Drive Cycle) | 2013+ Accord (some trims), 2016+ Pilot (after OBD init) | Nothing extra (car learns while driving) | 10–20 minutes of driving |
Note: Some Honda models like the 2018+ Odyssey use a hybrid approach—you initiate via OBD, then complete with a drive cycle.
Step-by-Step Relearn Procedures
1. Stationary (Magnet) Relearn – Most Honda Models (2008–2020)
This is the traditional method. You “wake” each tire sensor in a specific order using a TPMS tool or a strong magnet.
What you’ll need:
- A TPMS activation tool (preferably 125kHz or 433MHz capable)
- A strong magnet (rare earth works) if no tool available
- Vehicle in “relearn mode” (usually accessed by pressing a reset button or cycling the ignition)
Steps:
- Enter relearn mode: Turn ignition ON (engine off). Press the TPMS reset button (usually under the steering wheel or inside the glovebox) until the TPMS light blinks twice, then flashes continuously.
- Start at the left front (LF) tire: Place the activation tool or magnet against the tire sidewall near the valve stem. Trigger until the horn sounds once (or the light stops blinking briefly).
- Move to RF, RR, LR: Repeat at right front, right rear, then left rear. Horn will sound once per successful sensor read.
- Exit relearn mode: After the last sensor (LR), the horn will sound twice. Turn ignition off. The TPMS light should go out after a short drive (auto learn completes).
Troubleshooting: If no horn sounds, the sensor may be incompatible or the battery dead. The BL-ST-037 | BH-Sens 433MHz TPMS Tire Pressure Sensor | Fits Fukang, Honda | OE# 4275333W, ZQ01162780 is pre-programmed to work with Honda’s 433MHz system—verify your Honda model fits the listed OE numbers.
2. OBD (Scan Tool) Relearn – Newer Honda Models (2016+)
Honda shifted to OBD-based relearn for faster, more reliable ID programming.
What you’ll need:
- A TPMS scan tool that supports Honda (e.g., Autel MaxiTPMS, Bartec Tech400)
- Vehicle OBD-II port (under dashboard)
Steps:
- Connect the scan tool to the OBD port and turn ignition ON.
- Select “Honda” and then “TPMS Relearn.”
- Follow the on-screen prompts to enter the sensor IDs (many tools auto-read IDs if you trigger each sensor with the tool’s wireless antenna).
- Once all four IDs are written, the tool will confirm. Turn ignition off.
- Drive a short distance (usually above 15 mph) to complete the auto-learn portion.
Tip: For 2017+ CR-V, a full OBD relearn may require the tool to also reset the wheel position calibration.
3. Auto Relearn (Drive Cycle) – Late Model Hondas (2013+)
Some Honda models—especially the 2013–2017 Accord and 2016+ Pilot—can learn sensor IDs automatically after a battery disconnect or sensor replacement, provided the IDs match the vehicle’s stored positions.
Steps:
- Replace sensors (or rotate tires) with correct pre-programmed sensors.
- Inflate all tires to the recommended pressure.
- Drive the vehicle above 25 mph for 10–20 minutes, allowing the ECU to detect the new IDs and assign wheel positions.
- The TPMS light will turn off once learning is complete.
Important: Auto relearn only works if the new sensor IDs are within a specific range (usually OEM or high-quality aftermarket like BH-Sens). Random aftermarket sensors may require a stationary or OBD relearn.
Recommended Part for Honda TPMS Replacement

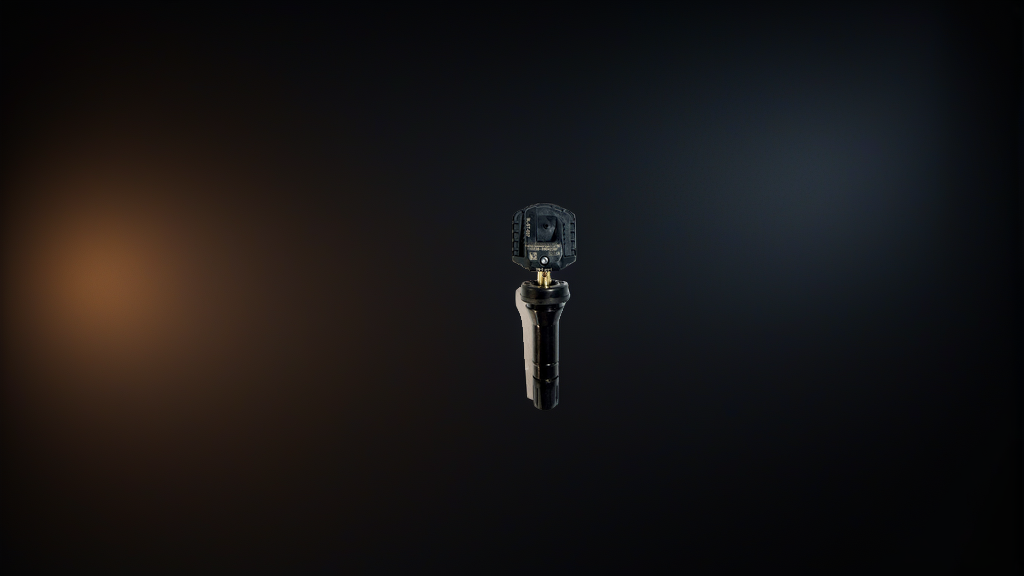

If your Honda uses 433MHz clamp-in sensors, the BL-ST-037 | BH-Sens 433MHz TPMS Tire Pressure Sensor | Fits Fukang, Honda | OE# 4275333W, ZQ01162780 is a direct-fit, pre-programmed option. It covers 5 specific Honda and Fukang applications, matching OE numbers 4275333W and ZQ01162780. Always confirm your vehicle’s year and trim against our fitment guide before ordering.
FAQ
Can I do the stationary relearn without a TPMS tool?
Yes, a strong neodymium magnet placed against the tire sidewall near the valve stem can trigger the sensor in many Honda models. However, the horn response is weaker, and you may need multiple attempts. A dedicated TPMS tool is more reliable.
Why does my TPMS light still flash after the relearn?
Flashing usually means the sensor IDs were not accepted (e.g., wrong frequency, dead battery, or incompatible protocol). Double-check that your sensors are 433MHz and pre-programmed for Honda. If the light stays solid, tire pressure is low—fill to spec.
How often do Honda TPMS sensors need relearning?
Only after sensor replacement, tire rotation (on some models), or if you install a new set of wheels with different sensors. Normal tire rotations on 2016+ Honda models may not require relearn if the system auto-detects wheel positions.
Does the BH-Sens BL-ST-037 work with all Honda models?
No, it fits specific models listed under OE numbers 4275333W and ZQ01162780—mostly Fukang and certain Honda applications. Check our product page for the exact 5 fitments. For other Honda models, we offer compatible 433MHz options.
